Summary

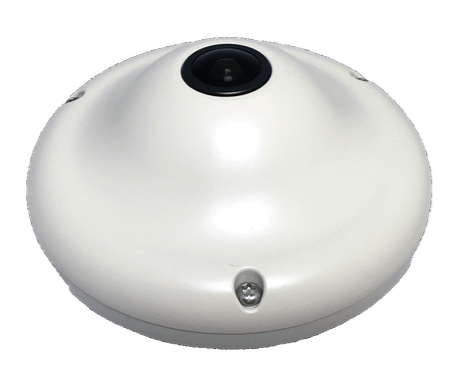

The YDV-FSH-3MP is a standalone edge network camera that provides 360o views with 3.1 megapixel CMOS sensor capable of delivering 30 frames per second. Installation is made simple by allowing the installer to rotate the sensor both mechanically and electronically which significantly reduces setup. This camera’s class-leading dual-core processing power enables third-party applications to efficiently reside on the camera such as redundant edge storage. The YDV-FSH-3MP can deliver high-resolution video while concurrently running applications like Spectrum Edge, Ignite Prism and a growing list of other VMS and analytic packages. The 1.19mm, 360°, F2.0 lens is specifically engineered to complement the sensor and provides highly optimized HD quality imaging. The YDV-FSH-3MP’s all aluminum indoor housing is also vandal resistant and has optional wall mounting accessories.


Features
-
Advanced Dual Core Analytics Video Processor
-
Full HD IP Streaming
-
2.2μm pixels
-
3.1 Megapixels (30fps)
-
Codecs (H.264, MJPEG) with 4 Simultaneous Streams
-
1/3” CMOS Sensor
-
1.19mm Fixed Lens
-
360°/180° Field of View
-
True Day and Night, IR Corrected
-
802.3af Power over Ethernet [PoE] & 12VDC Auxiliary
-
Advanced Edge Storage Platform: Micro SDXC Card Slot (Up to 256GB)
-
Web Server Built-in
-
10/100 POE
-
All aluminum indoor vandal housing
-
Digital WDR (Wide Dynamic Range)
-
Highly Flexible H.264 Bitrate Data Controls
-
96 Motion Detection Zones
-
ONVIF Compliant Pro le S

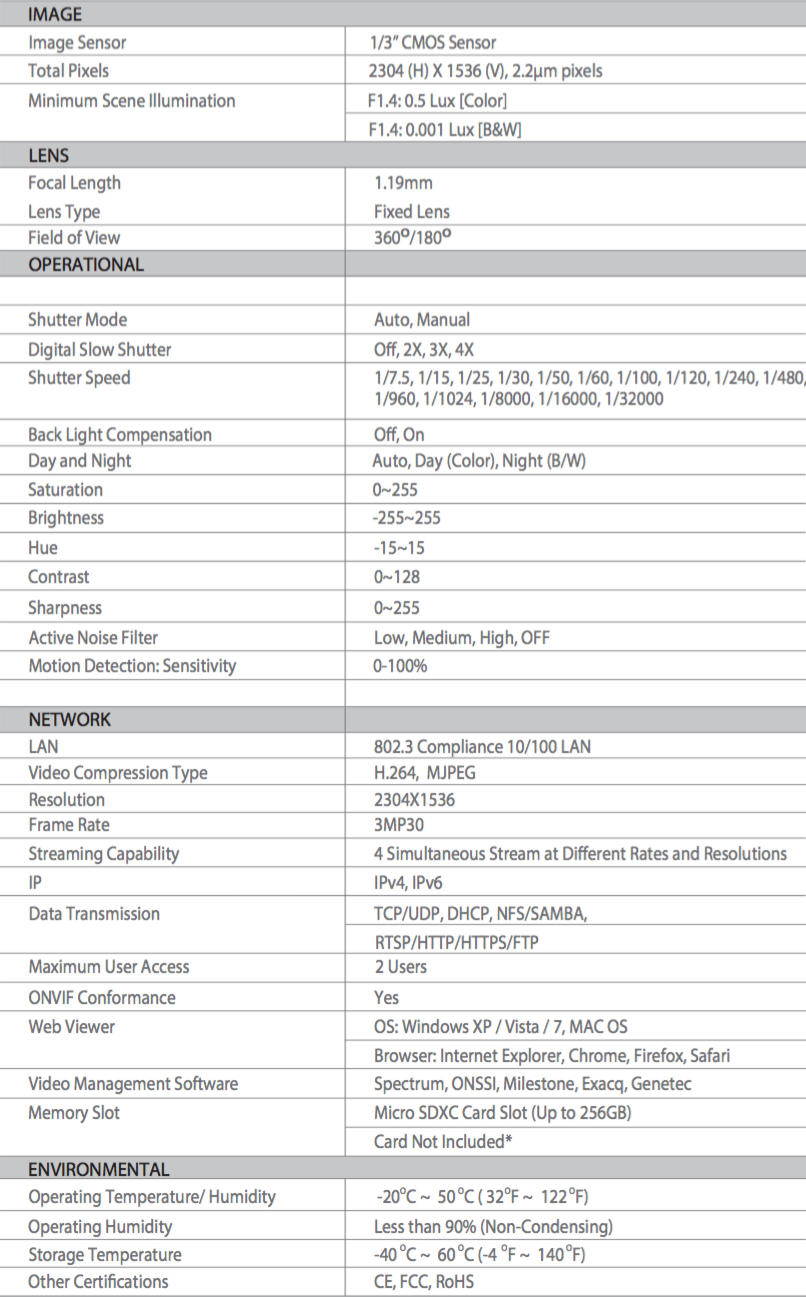

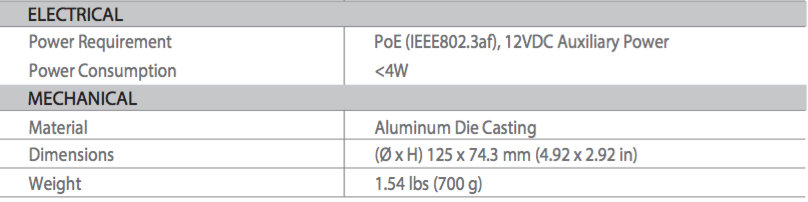

Specifications


Download the manufacturer’s spec sheet as a PDF using the link below
