Models: DWC-MF4Wi4C2, DWC-MF4Wi4C1, DWC-MF4Wi4C6, DWC-MF4Wi6C2, DWC-MF4Wi6C1, DWC-MF4Wi6C6

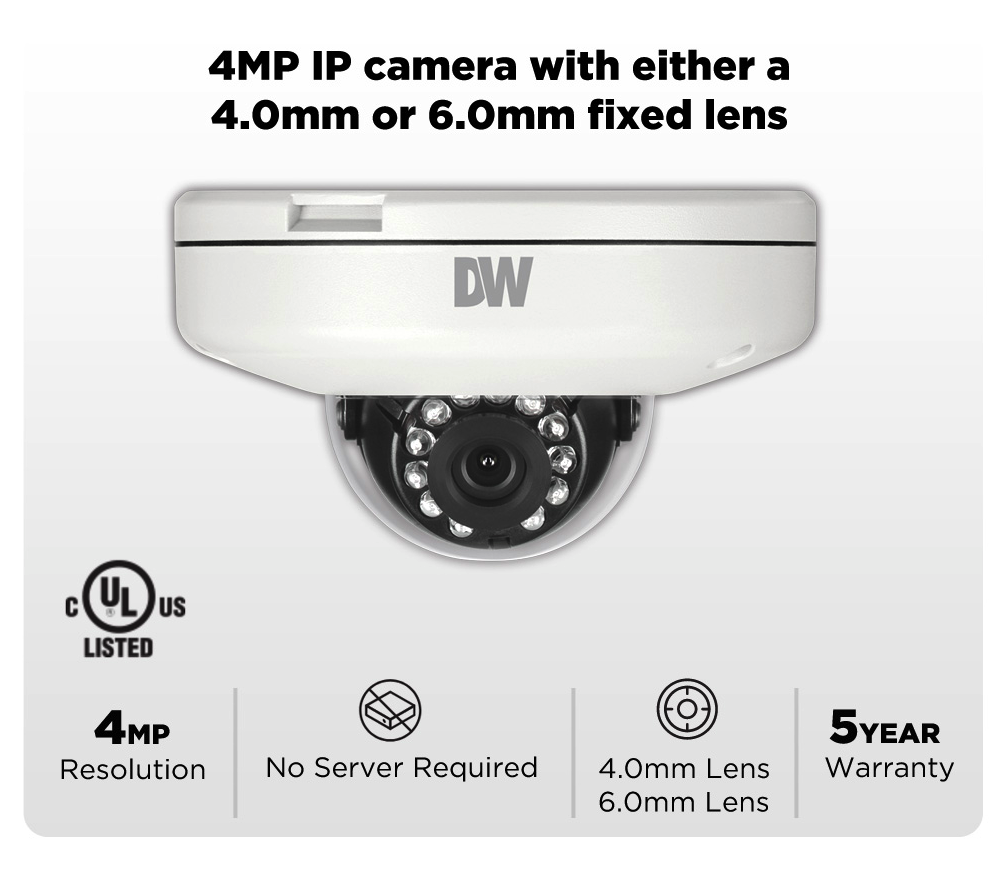

All-in-one 4MP ultra low-profile vandal dome IP camera with 4.0mm and 6.0mm fixed lens options and IR
Specifications
|
IMAGE |
|
|
Image sensor |
4MP 1/3” CMOS |
|
Total pixels |
2688 (H) x 1520 (V) |
|
Minimum scene illumination |
0.41 lux (color) |
|
Test Monitor Video Output |
Local video output CVBS 1.0V p-p (75 ?), 4:3 aspect ratio |
|
Resolution |
4MP (2560 x 1440) |
|
LENS |
|
|
Focal length |
4.0mm F2.0 (DWC-MF4Wi4C2, DWC-MF4Wi4C1, DWC-MF4Wi4C6) |
|
Lens type |
Fixed lens |
|
Field of view (FoV) |
81° (DWC-MF4Wi4C2, DWC-MF4Wi4C1, DWC-MF4Wi4C6) |
|
IR distance |
50ft range |
|
OPERATIONAL |
|
|
Shutter mode |
Auto, manual, anti-flicker, slow shutter |
|
Shutter speed |
1/30~1/32000 |
|
Slow shutter |
1~1/5,1/7.5, 1/10 |
|
Auto gain control |
Auto |
|
Day / night |
Auto, day (color), night (B/W) |
|
Smart DNR™ 3D digital noise reduction |
0~11 |
|
Wide dynamic range (WDR) |
True WDR Off, WDR2x, WDR3x |
|
Wide dynamic range (WDR) dB |
120dB |
|
Privacy zone |
4 programmable privacy masks |
|
Alarm notifications |
Notifications via e-mail, FTP server or SD card recording (card not included) |
|
NETWORK |
|
|
LAN |
802.3 compliance 10/100 LAN |
|
Video compression type |
H.264, MJPEG |
|
Resolution |
H.264: 1440p/1080p/720p/VGA/D1/CIF MJPEG: 1280x720/800x600/VGA/768x432/D1/CIF |
|
Frame rate |
Up to 30fps at all resolutions |
|
Video bitrate |
100Kbps ~ 10Mbps, multi-rate for preview and recording |
|
Bitrate control |
Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
|
Streaming capability |
Dual-stream at different rates and resolutions |
|
IP |
IPv4 |
|
Protocol |
Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2) |
|
Security |
HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) |
|
ONVIF conformance |
Yes |
|
Web viewer |
OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® |
|
ENVIRONMENTAL |
|
|
Operating temperature |
-4°F ~ 122°F (-20°C ~ 50°C) |
|
Operating humidity |
10–90% RH (non–condensing) |
|
IP rating |
IP66-rated weather and tamper-resistant |
|
IK rating |
IK10 rated impact resistant |
|
Other certifications |
CE, FCC, RoHS |
|
ELECTRICAL |
|
|
Power requirement |
DC12V, POE (IEEE 802.3af class 3). Adaptor not included. |
|
Power consumption |
DC12V: Max 5.6W PoE: Max 7.4W |
|
MECHANICAL |
|
|
Material |
Aluminum vandal housing, polycarbonate dome |
|
Dimensions |
4.9" x 2.9" (125 x 74.3 mm) |
|
Weight |
1.54 lbs (0.7kg) |
