Model: DWC-PVF5M1TIRC2, DWC-PVF5M1TIRC1, DWC-PVF5M1TIRC6

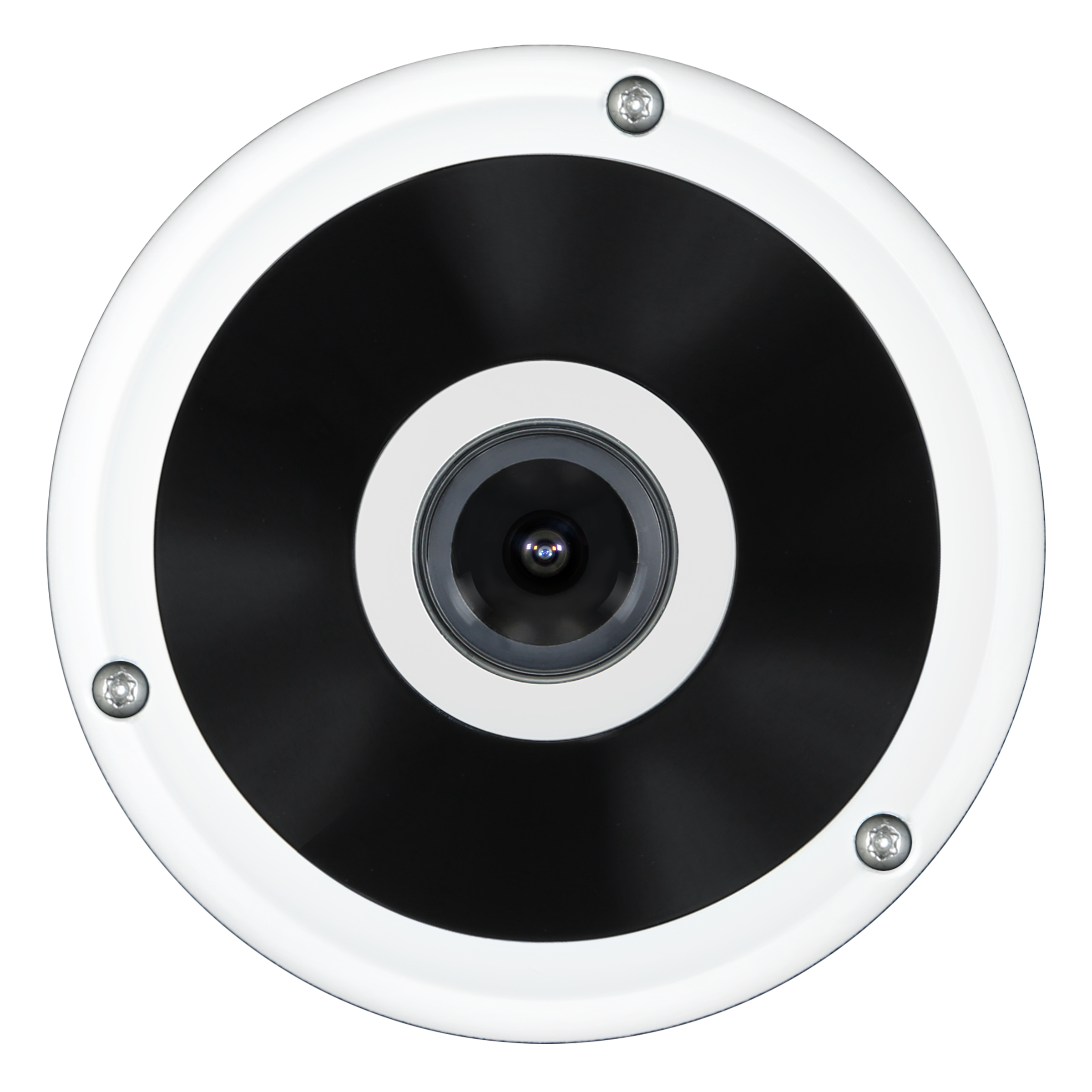

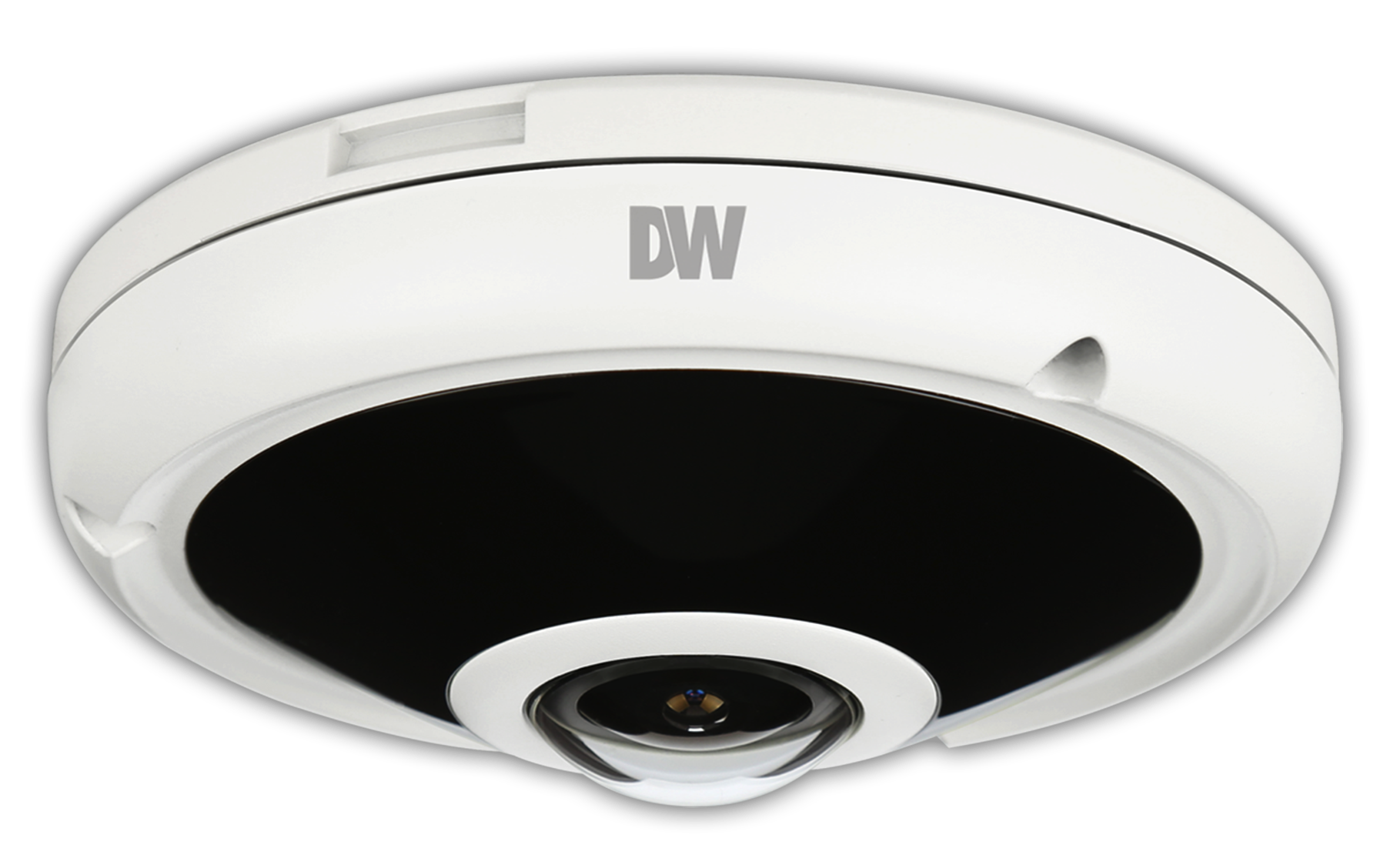

All-in-one 5MP vandal fisheye IP camera with 1.5mm fisheye lens and IR
Specifications
|
IMAGE |
|
|
Image sensor |
6.4MP 1/1.8” CMOS |
|
Total pixels |
3096 (H) X 2080 (V) |
|
Minimum scene illumination |
0.39 lux (color) |
|
0 lux (B/W) |
|
|
Video output |
Local video output CVBS 1.0V p-p (75 ?), 4:3 aspect ratio |
|
Resolution |
5MP (2592x1944) |
|
LENS |
|
|
Focal length |
1.55mm, F2.5 |
|
Lens type |
Fisheye lens |
|
Field of view (FoV) |
360° |
|
IR distance |
55ft range |
|
OPERATIONAL |
|
|
Shutter mode |
Auto, manual, anti-flicker, slow shutter |
|
Shutter speed |
1/30~1/32000 |
|
Slow shutter |
1~1/5,1/7.5, 1/10 |
|
Auto gain control |
Auto |
|
Day / night |
Auto, day (color), night (B/W) |
|
Smart DNR™ 3D digital noise reduction |
0~11 |
|
Privacy zone |
4 programmable privacy masks |
|
Alarm notifications |
Notifications via e-mail, FTP server or SD card recording (card not included) |
|
NETWORK |
|
|
LAN |
10/100 based-T, RJ-45 connector |
|
Video compression type |
H.264, MJPEG |
|
Resolution |
2592 X 1944 @ 30fps 640X480 @ 30fps 320X240 @ 30fps |
|
Frame rate |
Up to 30fps at all resolutions |
|
Video bitrate |
100Kbps ~ 10Mbps, multi-rate for preview and recording |
|
Bitrate control |
Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) |
|
Streaming capability |
Dual-stream at different rates and resolutions |
|
IP |
IPv4 |
|
Protocol |
Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2) |
|
Security |
HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW) |
|
ONVIF conformance |
Yes |
|
Web viewer |
OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® |
|
ENVIRONMENTAL |
|
|
Operating temperature |
-4°F ~ 122°F (-20°C ~ 50°C) |
|
Operating humidity |
Less than 90% (Non-Condensing) |
|
IP rating |
IP66-rated weather and tamper-resistant |
|
Other certifications |
CE, FCC, RoHS |
|
ELECTRICAL |
|
|
Power requirement |
DC12V, POE IEEE 802.3af class 3 (adaptor not Included) |
|
Power consumption |
LED On: 6.5W LED Off: 3.6W |
|
MECHANICAL |
|
|
Material |
Aluminum vandal housing, polycarbonate dome |
|
Dimensions |
4.9" x 1.88” (125 x 48mm) |
|
Weight |
1.1 lbs (0.5kg) |
